BATH ACCESSORIES (COMMON)
This PDF was last updated on 12/17/2024. Please redownload if you’re currently working from an older version.
The Basis of Design (BOD) specifies performance criteria and provides sample products for your reference. The sample products noted are not required to be used in new construction projects as long as alternate products meet all the necessary criteria.
GENERAL INFORMATION & REQUIRED DETAILS:
DO NOT INSTALL:
Soap dishes at bathroom sinks.
MIRRORS
MIRRORS
MIRRORS
GENERAL INFORMATION & REQUIRED DETAILS:
Wall-mounted Mirror.
24” x 36” Stainless Steel Channel Frame Mirror.
Frame: Stainless Steel, roll-formed one piece construction.
Glass: ¼” thick, No. 1 quality, plate/float glass, silver coated and hermetically sealed with a uniform copper plating.
Installation:
Install per manufacturer's instructions.
Install on wood stud or add blocking; do not install directly to sheetrock.
SAMPLE PRODUCT:
This sample product is NOT required to be used in new construction or rehab projects as long as the specified product(s) complies with the performance criteria noted above.
Bobrick
Framed Mirror 24 x 36" Stainless Steel
Available on HD Supply and Ferguson

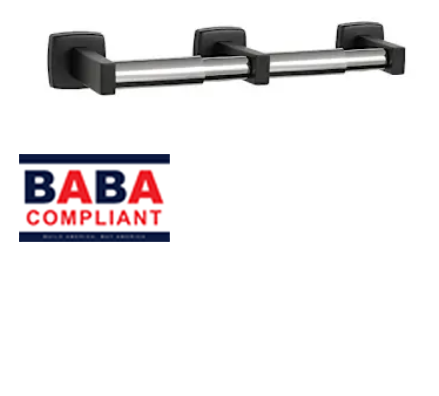

TOILET TISSUE HOLDERS
TOILET TISSUE HOLDERS
TOILET TISSUE HOLDERS
GENERAL INFORMATION & REQUIRED DETAILS:
Surface mounted holder for standard core roll tissue.
Unit to be fabricated stainless steel.
Finish: Satin Stainless Steel, roller to be chrome-plated high impact resistant ABS plastic.
Installation:
Install per manufacturer's instructions.
Install on wood stud or add blocking; do not install directly to sheetrock.
SAMPLE PRODUCT:
This sample product is NOT required to be used in new construction or rehab projects as long as the specified product(s) complies with the performance criteria noted above.
Franklin Brass / Stainless Steel Twin Toilet Paper Holder Concealed Mount
Manufacturer Number:
819425
GRAB BARS
GRAB BARS
grab bars
GENERAL INFORMATION & REQUIRED DETAILS:
Grab Bars with Snap-on flange covers for concealed mounting shall be fabricated of stainless steel.
Tubing shall be 1 ½” O.D.(outside diameter).
End flanges shall have two 3/8” diameter mounting holes, center/intermediate supports shall have 2 keyhole slots for easy access.
All exposed surfaces to be satin stainless steel finish.
All grab bar tubing to have peened, non-slip finish.
Provide in configurations and mounting heights as required by Federal, State and Local Accessibility Codes and Fair Housing Guidelines.
Installation:
Install per manufacturer's instructions.
Install on wood stud or add blocking; do not install directly to sheetrock.
SAMPLE PRODUCTS:
These sample products are NOT required to be used in new construction or rehab projects as long as the specified product(s) complies with the performance criteria noted above.
Bobrick
Concealed Mount Grab Bar Nonslip Griping 1-1/2" Diameter, 18" Length
Available on HD Supply
Bobrick
Concealed Mount Grab Bar Nonslip Griping 1-1/2" Diameter, 24" Length
Available on HD Supply
SOAP DISPENSERS
SOAP DISPENSERS
soap dispensers
GENERAL INFORMATION & REQUIRED DETAILS:
To be installed in Common Bathrooms only.
Stainless steel construction.
Satin finish.
ADA compliant.
Installation:
Install per manufacturer's instructions.
Install on wood stud or add blocking; do not install directly to sheetrock.
SAMPLE PRODUCT:
This sample product is NOT required to be used in new construction or rehab projects as long as the specified product(s) complies with the performance criteria noted above.
Bobrick
Soap Dispenser Vertical
Mount Tall Stainless Steel
Available on HD Supply and Ferguson

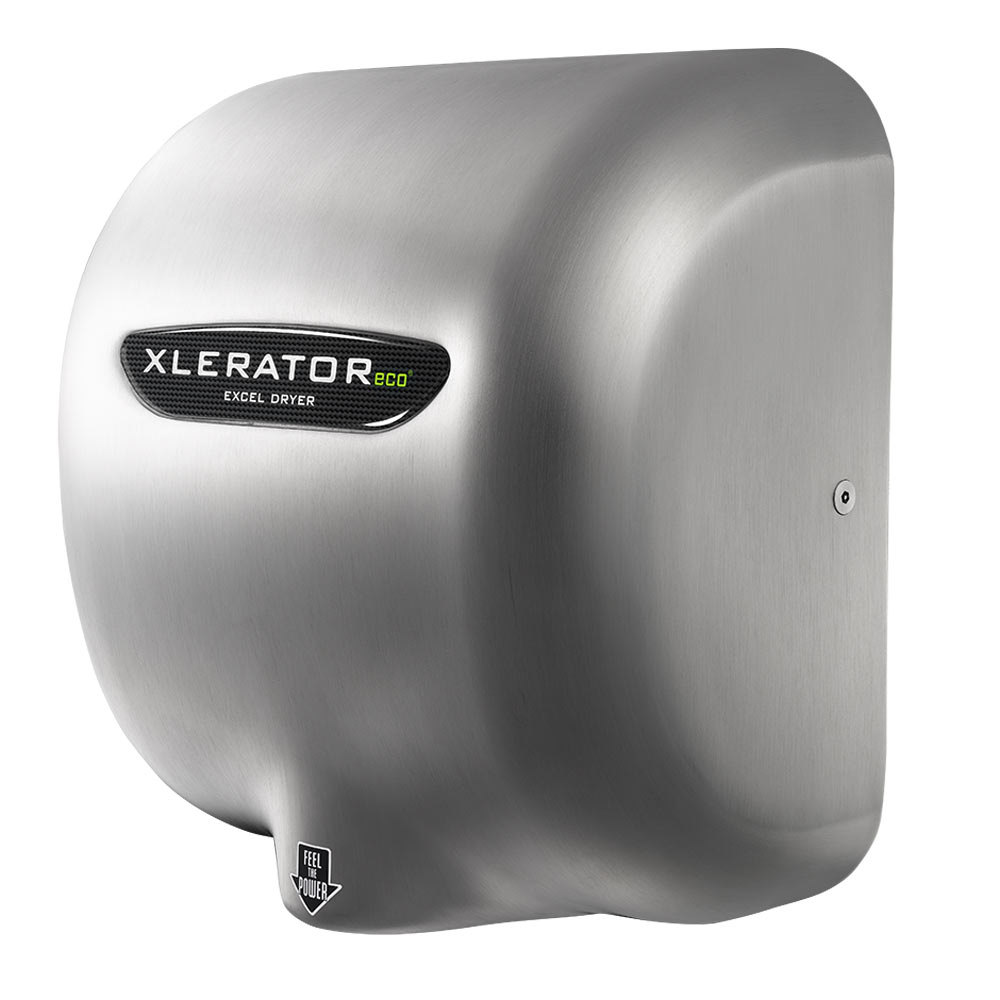

HAND DRYERS
HAND DRYERS
hand dryers
GENERAL INFORMATION & REQUIRED DETAILS:
Stainless steel cover.
Installation:
Install per manufacturer's instructions.
Install on wood stud or add blocking; do not install directly to sheetrock.
SAMPLE PRODUCT:
This sample product is NOT required to be used in new construction or rehab projects as long as the specified product(s) complies with the performance criteria noted above.
XLERATOR
No Heat Hand Dryer
With Noise Reduction,
Brushed Stainless
Available on HD Supply
