UNIT FINISHES


UNIT FINISHES

This PDF was last updated on 11/01/2024. Please redownload if you’re currently working from an older version.


The Basis of Design (BOD) specifies performance criteria and provides sample products for your reference. The sample products noted are not required to be used in new construction projects as long as alternate products meet all the necessary criteria.

KITCHEN-LIGHT


KITCHEN-LIGHT


KITCHEN

Light COLOR SCHEME

LIGHT CABINET COLOR:



View cabinet spec for door and box requirements:

LIGHT COUNTERTOP OPTIONS:

Wilsonart
Kalahari Topaz
4588K-07

Wilsonart

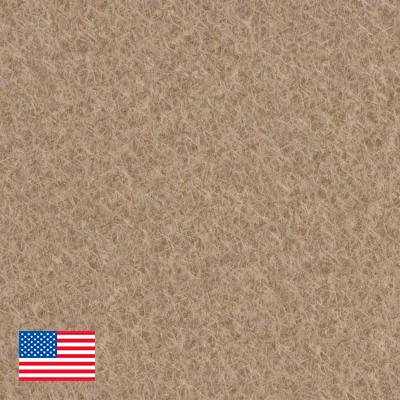

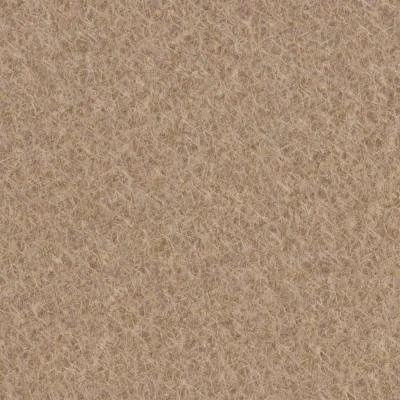

Tungsten EV
4814-60

Wilsonart

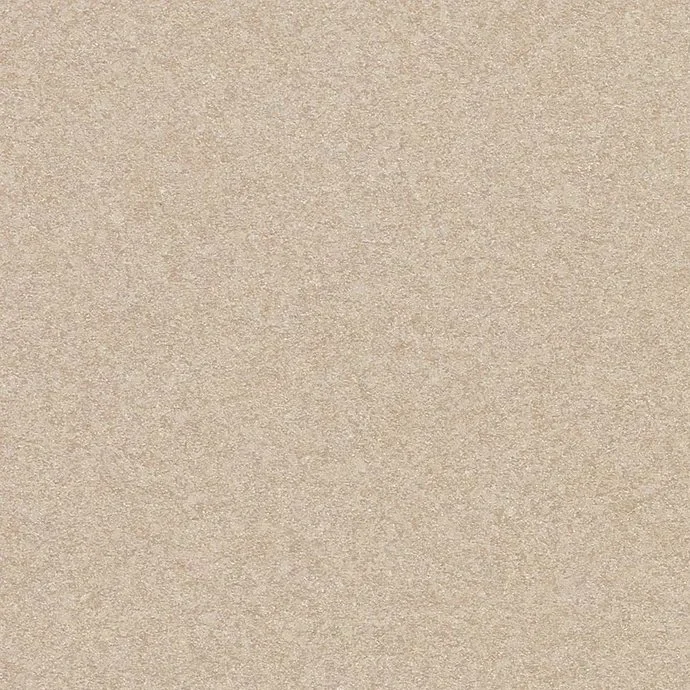

Desert Zephyr
4841-60

Wilsonart
Sedona Bluff
1824

View countertop spec for postform requirements:

KITCHEN-MEDIUM


KITCHEN-MEDIUM


MEDIUM COLOR SCHEME

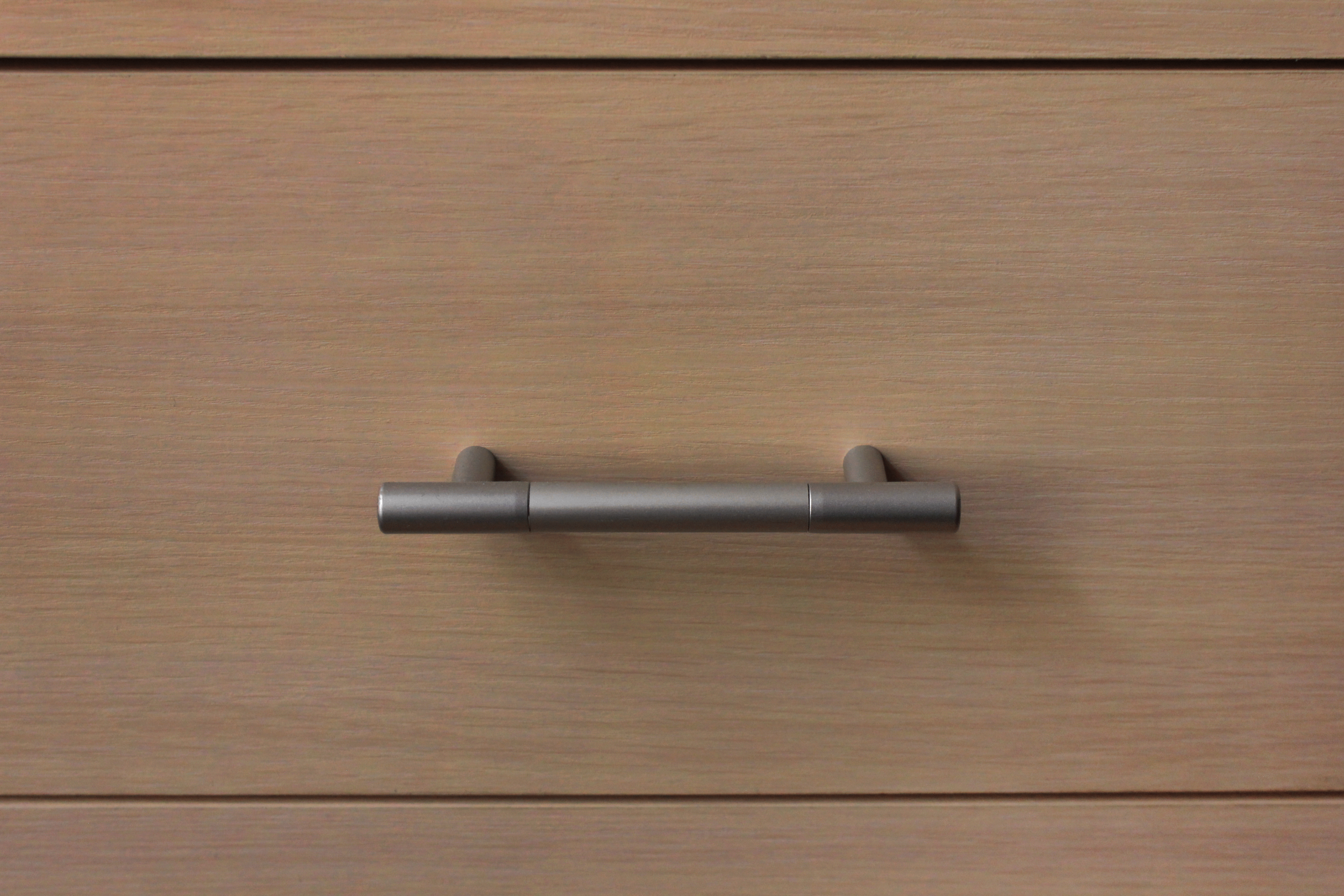

MEDIUM CABINET COLOR:



View cabinet spec for door and box requirements:

MEDIUM COUNTERTOP OPTIONS:

Kalahari Topaz-USA.jpg

Wilsonart
Kalahri Topaz
4588K-07

Silicon Ev-USA.jpg

Wilsonart
Silicon Ev
4811-60

Wilsonart
Silver Travertine
1858K-55

Wilsonart
Sedona Bluff
1824

View countertop spec for postform requirements:

KITCHEN-DARK


KITCHEN-DARK


DARK COLOR SCHEME

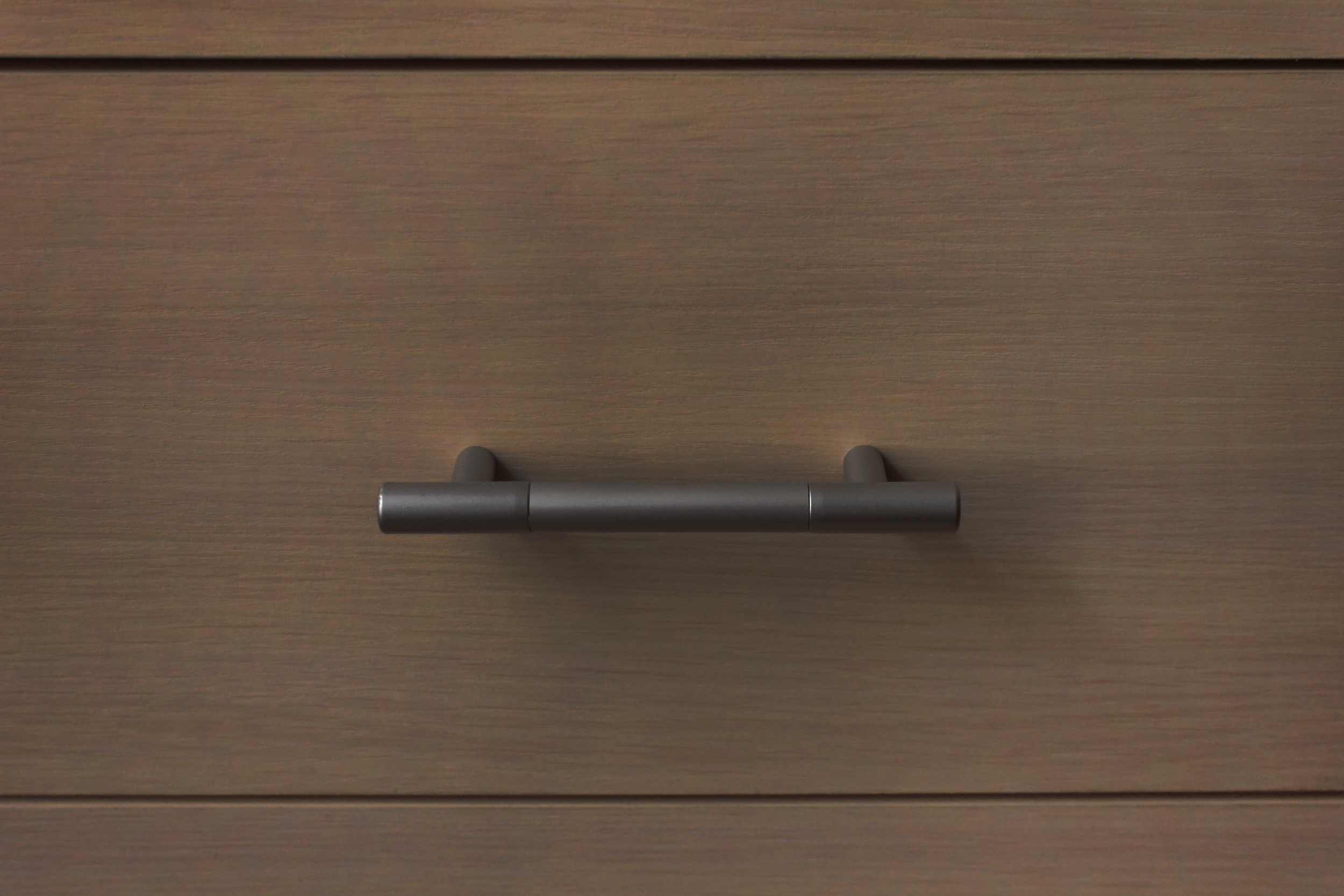

DARK CABINET COLOR:



View cabinet spec for door and box requirements:

DARK COUNTERTOP OPTIONS:

Kalahari Topaz-USA.jpg

Wilsonart
Kalahri Topaz
4588K-07

Silicon Ev-USA.jpg

Wilsonart
Silicon EV
4811-60

Wilsonart
Desert Zephyr
4841-60

Wilsonart
Sedona Bluff
1824

View countertop spec for postform requirements:



PULLS & SPLASH PLATE

PULLS:

Amerock for Less
Allison Curved 96MM Pull
Satin Nickel
HD Supply: 800729 Ferguson: 4596592

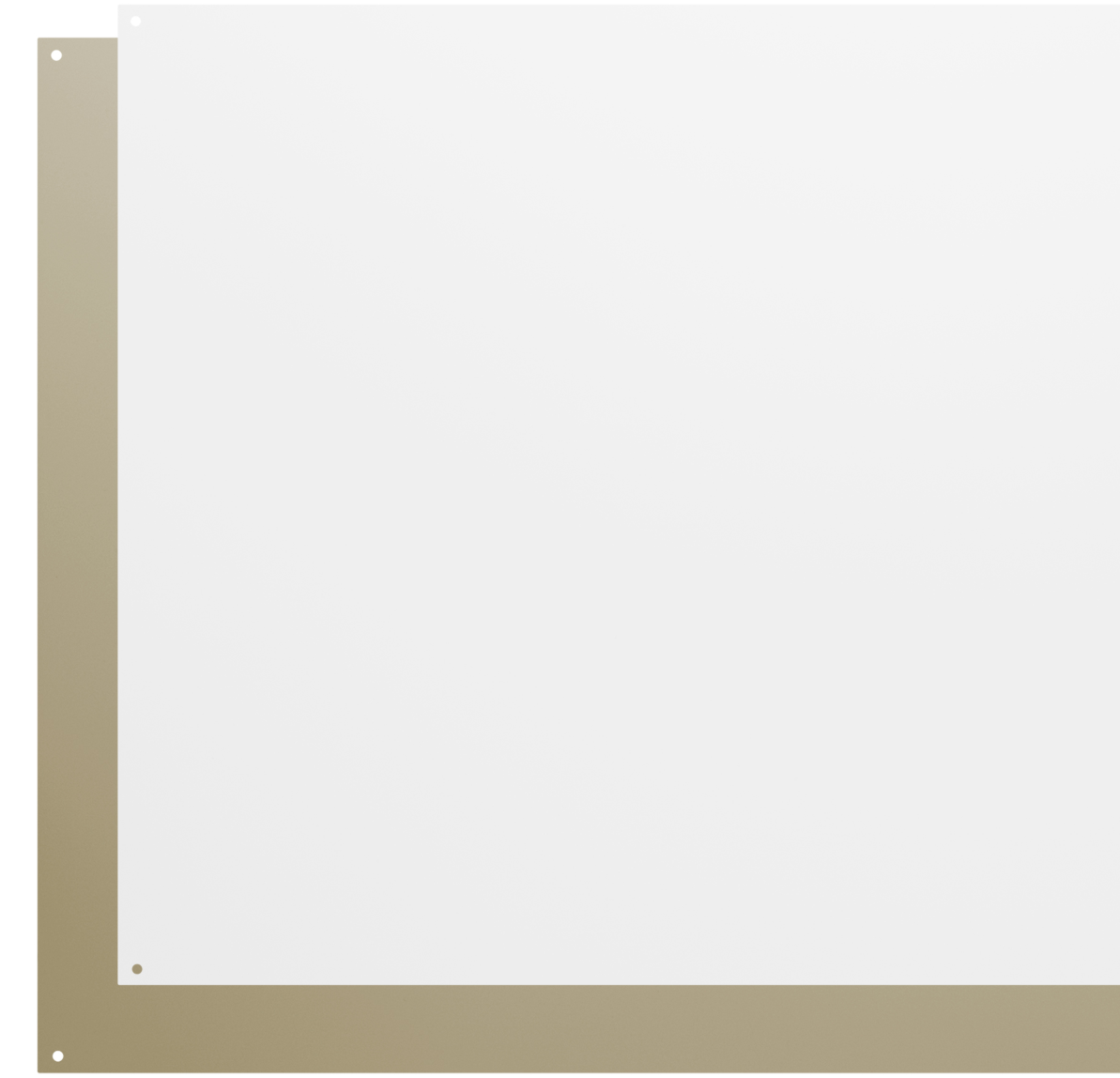

SPLASH PLATE:

Broan
Reversible Backsplash
Almond
SP300108
(To be installed on wall behind stove)



BATH


BATH


BATH:

SHOWER/ TUB SURROUND:

Swanstone
Bisque
(018)



VANITY:

Swanstone
Bisque
(018)




PAINT


PAINT


PAINT:

CONTACTS:

  • POAH has negotiated pricing with select manufacturers and wholesalers. When purchasing and installing new paint please contact the following representatives:

WALLS:

Sherwin Williams 6378
Crisp Linen
Eggshell

CEILINGS:

Sherwin Williams
7002
Downy
Flat

TRIM:

Sherwin Williams
7102
White Flour
Semi-gloss

DOORS:

Sherwin Williams
7102
White Flour
Semi-gloss



For Sheetrock walls use:

  • Prime coat: Sherwin Williams- ProMar 200 Zero VOC Latex Primer, B28W2600, at 4.0 mils wet, 1.5 mils dry.

  • Top coat: Sherwin Williams- ProMar 200 Zero VOC Latex Semi-Gloss, B31-2600 Series, at 4.0 mils wet, 1.6 mils dry, per coat.

For all other wall types, see the Paint Spec.



FLOORING


FLOORING


FLOORING

CONTACTS:

  • POAH has negotiated pricing with select manufacturers and wholesalers. When purchasing and installing new flooring please contact the following representatives:

REQUIRED DETAILS FOR ALL FLOORING TYPES:

  • UNIT TURNS:

    • To achieve unit compartmentalization, seal joint from new flooring to existing wall with manufacturer approved joint
      sealant.

    • All new flooring requires a level subfloor free from cracks, bumps and excessive adhesive residue from former floors.

      • Subcontractor must evaluate existing subfloor condition and include associated costs for necessary repairs in their bid.

  • REHABS:

    • Moisture testing is required in basement or slab on grade units.

    • To achieve unit compartmentalization, seal joint from new flooring to existing wall with manufacturer approved joint
      sealant.

    • All new flooring requires a level subfloor free from cracks, bumps and excessive adhesive residue from former floors.

      • Subcontractor must evaluate existing subfloor condition and include associated costs for necessary repairs in their bid.

  • NEW CONSTRUCTION:

    • Follow compartmentalization/ air sealing per architect’s details. If not included in details, highlight for architect.

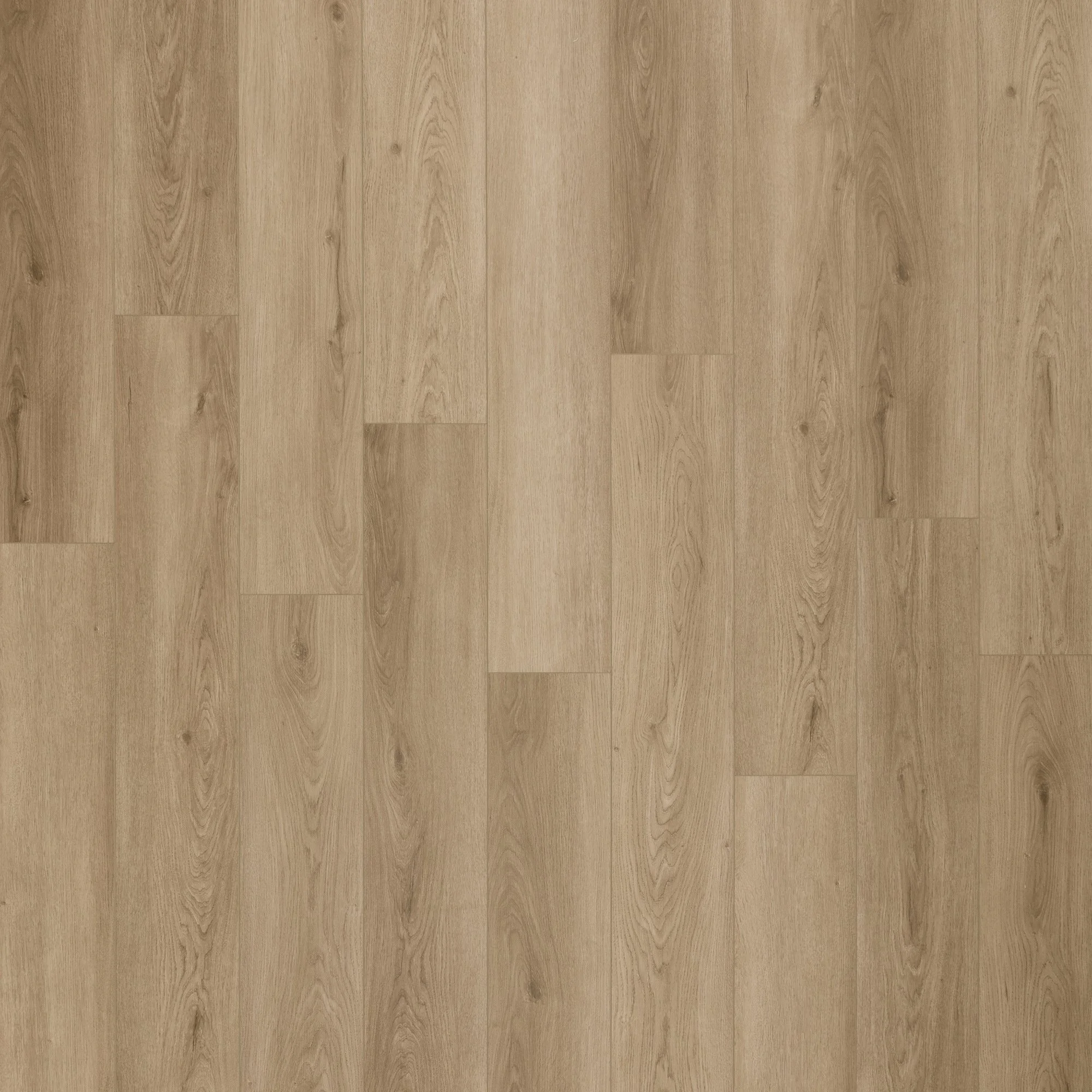

VINYL PLANK OPTIONS:

Location: Kitchen, Living, Bedroom, Entry/Corridor.
Wear Layer: 12 mil

Glue-Down Options:

Subfloor condition: even, smooth, & free of cracks.
Size: 8” x 48” planks, 2.0mm thickness.
Line: UltimateFlex Select

Mohawk
Rexford II

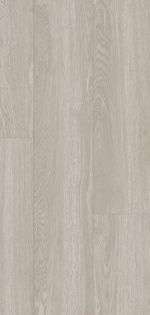

Mako Oak
Color #170

Mohawk
Rexford II
Nautica Piling Oak
Color #370

Mohawk
Rexford II

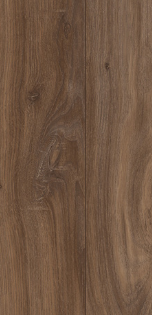

Loggerhead Oak
Color #880

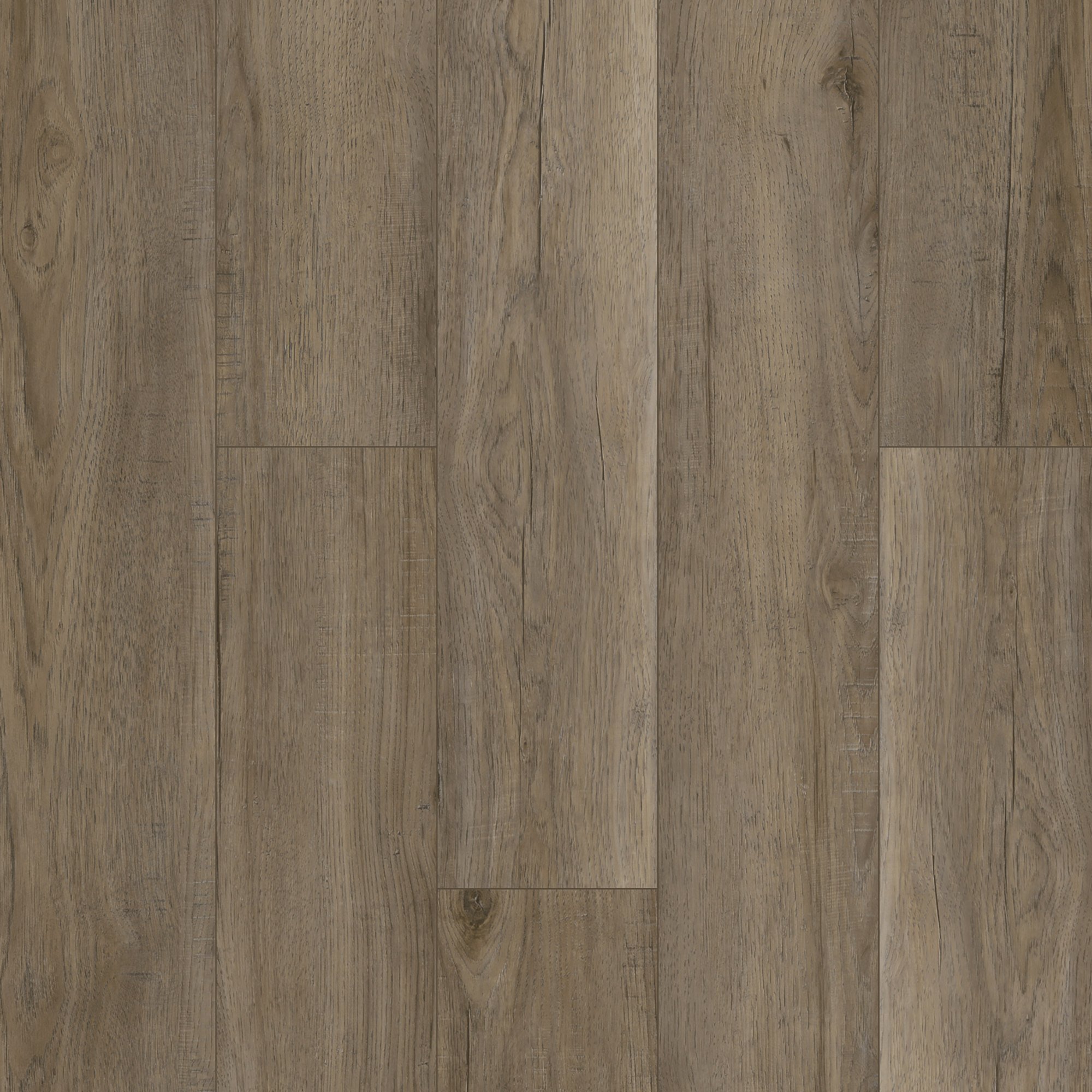

Floating/Click Options:

Subfloor condition: even, smooth, & free of cracks.
Size: 6” x 48” planks, 4.5mm thickness.
Line: SolidTech Essentials

Mohawk
Ballard 4.5
Reef Gold
Color #840

Mohawk
Ballard 4.5
Simply Ecru
Color #860

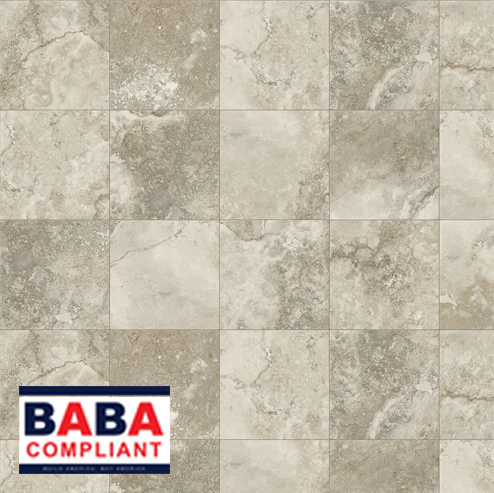

SHEET VINYL OPTIONS:

Location: Bathroom
Size: 12'-0" wide rolls, 65 guage thickness
Line: VersaTech Select


Mohawk
Divinity
Almond Spice Color #933



Mohawk
Divinity
Silver Screen
Color #591

REQUIRED DETAILS:

All seams must be chemically welded.




STAIRS:

Tarkett
Vinyl Stair Treads

Service Weight

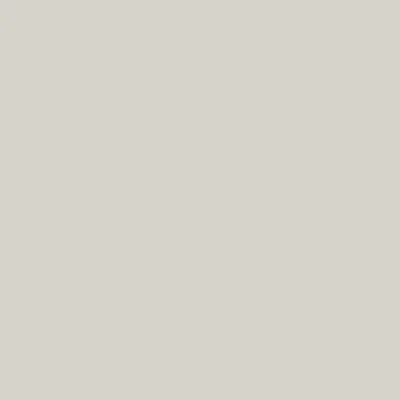

22 Pearl

Based on the amount of stair traffic, pick one of the following solutions:

BOD_Stairs_Artboard 4.png

LIGHT TRAFFIC

NOSING

Nosing: Vinyl
Tread: Flooring Material
Riser: Painted

BOD_Stairs_Artboard 3.png

MEDIUM TRAFFIC

TREAD

Nosing/Tread: Vinyl
Riser: Painted

HEAVY TRAFFIC

TREAD + INTEGRATED RISER

All vinyl.





RUBBER BASE


RUBBER BASE


RUBBER BASE

  • Suggested Manufacturers: Armstrong, Mannington, Tarkett

  • Type TV (vinyl thermoplastic); Group I (solid, homogeneous)

  • Length: Coil stock ONLY, in manufacturer’s standard length

  • Size: 4 inches in height, 0.125” min. thickness, and Cove style

Tarkett
Baseworks
Toe 4"
34 Almond

Johnsonite 09 Clay.jpg

Tarkett
Baseworks
Toe 4"
09 Clay

Johnsonite 280 Shoreline.jpg

Tarkett
Baseworks
Toe 4"
280 Shoreline




CORNER INSTALLATION:

Factory Made Outside Corners:
Install factory made outisde corners before installing wall base.

Rubber Base Outside Corner.jpg


Field-Made Inside Corners:
Use a utility knife to score the back and notch out the base for inside corners.

Rubber Base Inside Corner.jpg
